MASTER PRICE LIST AND ORDERING DETAILS
ZTherapy Inc. Product Catalog
Click here to view our Policies Page
Prices subject to change without notice
Be sure to visit the New Products Page
Questions/Orders
CALL TO ORDER
Web site: https://ztherapy.com
Email: [email protected]
Tech: [email protected]
| Mail: | Core Returns: |
| (Payments, correspondence, etc.) | |
| ZTherapy Inc. | ZTherapy Inc |
| 4427 Roselawn Dr. NE Salem, OR 97305 USA | 4427 Roselawn Dr. NE Salem, OR 97305 USA |
Phone: (503) 587-9800
Fax: (503) 587-9801
Payment: Visa/ MasterCard/Amex/Discover/Money Orders/Cashiers Checks
Prices: All prices listed US currency, and do not include shipping.
Shipping:
Domestic shipping: Items are primarily shipped by Fedex ground
(with the exception of DVD’s and small items, which are sent Priority Mail or USPS Ground Advantage)
International shipping: We use postal service only
We do not sell body panels or run a junkyard. We specialize in Datsun and British/Volvo SU Carbs only!
CALL TO ORDER
WE DON’T OFFER ON-LINE ORDERING.
CALL TO ORDER
Re-buildable cores, when requested, should accompany your order. If not, a core charge will be charged. We are sometimes out of usable cores so we may require yours in advance to process the order. Cores should be sent prepaid to us, and must be in a re-buildable state.
Retail price list and part numbers JAPANESE INDUCTION PLEASE NOTE: Our core policy has changed. Click here to view
240Z
ZT100 – $950.00 + core
Service SS Reman Carb 69-72 ½ 240Z 3 or 4 Screw (pair) w/ZT Roller Shafts – includes new floats **Count the number of screws holding down the dome before calling to order. ’69-70 owners, do you have a drain plug on the float bowl? Note: Includes center linkage when available
ZT101 Core – $300
Core charge for one complete pair of carbs with center linkage and springs
ZT150 – $290
Complete Tune Up Kit for 2 Z carbs (pair needle & seats, pair SM, N27, or N58 needles, pair new ZT Nozzles, 2 float gaskets, 2 fuel lines, 4 fuel line clamps, 4 banjo washers, 4 insulator gaskets, Just SU’s DVD)
ZT154 – $120
ZTherapy nozzles – new (pair) .098, .099, .100, .101, .102, .103, .104, .105 (Over 6,000 ft? Buy one size smaller orifice from stock– .099 works!)
ZTSM – $50
SM needles – pair
ZT110 – $490.00 + core
Reman Carb Body 69-72 ½ 240Z 3 or 4 Screw w/ZT Roller Shafts (pair)
ZT111 – $200
Core Charge for one pair of carb bodies (with old butterflies) (pair)
ZT123 – $175.00 + core
Smooth and clean 240Z Intake/Balance Tube, polished and plated–no smog, no control valves, no vac taps. Water heating still works, if desired. Crankcase breather and Valve cover breather fittings intact. Includes firewall linkage, carb mounting nuts, washers, lock washers. Cleaned up insulator with new gaskets. Your choice of intakes (240Z water, 240Z no water, 260Z, with a 240Z balance tube. Extraneous holes are plugged. Basically all the junk on the balance tube is deleted (Smog equipment available at additional cost)
ZT124 Core – $150
Core charge for ZT123 intake(your dirty one must be complete-just like the one we sent you in advance!)
Stay Cool: Water-Free Intake Halves for Warmer Climates
Intake halves without the water pipes available upon request. The water HEATS the intake charge. Good in the Montana winter, bad year round in LA! Don’t run water, unless your Z is cold blooded to distraction.
ZT125 – $85 + core
Smooth & clean 240Z Balance Tube only, polished & plated – no smog, no control valves, no vac taps. Extraneous holes are plugged. Basically all the junk on the balance tube is deleted.
ZT126 Core – $75
Core charge for ZT125
ZT128 – $225 + core
Euro-Style Balance Tube Polished and Plated, All extra holes are Welded Shut, Ground down smooth and polished
ZT128 Core – $75
Core charge for ZT128
ZT119 – $85 + core
Intake manifold only – polished & plated
ZT119C Core – $75
Core charge for intake manifold
260Z Owners (July ’72+)
ZT161 – $1,158.00
260Z Conversion Kit–keeping the 260Z EGR Balance Tube. Includes 2 240Z 3 screw carbs, center linkage, throttle return springs, new floats. Includes core fee
ZT162 – $1,505.00
260Z Conversion Kit–No EGR–Clean 240Z Balance Tube. Includes 2 240Z 3 screw carbs, center linkage, throttle return springs, new floats. Includes 240 Z Balance tube. Includes firewall linkage, carb mounting nuts, washers, lock washers. Cleaned up insulator with new gaskets. Crankcase breather and Valve cover breather fittings intact. Extraneous holes are plugged. Basically all the junk on the balance tube is deleted. Includes Core Fee. This is what you buy if you have a 7/72+ with the crappy carbs and want a 240Z setup
ZT122 – $290
240Z Balance Tube for 260Z conversion (includes core fee) for7/72+ 260Z owners wishing to delete the EGR valve and all the garbage on the intake. Includes linkage to firewall. Cleans up the intake to match the 240Z. Crankcase breather, valve cover breather, brake booster tap fittings intact. Air pump may be retained. Stock air cleaner may be retained. Basically all the junk on the balance tube is deleted. Includes core fee which will not be refunded
ZT132 – $65
Adapter plates, 260Z air cleaner to 240Z carbsCNC milled, all studs, nyloc nuts, countersunk metric bolts, tool. For street driving only. Hot Z cars must also buy ROUND air horns to install in 260Z air cleaner.
ZTSM – $50
SM needles – pair
ZT20 – $12 each
Fuel Line
ZT25 – $10 each
Throttle return springs
ZT25-665 – $50
Needle & Seat (pair)
ZT30 – $50 each
Float – Z
Gaskets
ZT095 – $6 each
Carb to air cleaner gaskets, Z/2L
ZT096 – $4 each
Gaskets – 2 bolt for the 1600 / SSS / British SU
ZT097 – $4 each
Float Bowl Gaskets
ZT098 – $4 each
Gaskets – 3 Screw water/manifold, Carb to Intake
ZT099 – $4 each
Gaskets, for the Z/2L/BritSU.Non/water, 4 screw
Tired of Your 260Z’s Rough Ride? Try 240Z 3 Screw Carbs!
3 Screw 240Z Carbs were installed by the dealer on some 260Z’s if the customer complained enough about the poor performance, vapor lock problem, and general miserable driving behaviors We sell 3 screw 240Z carbs to 260Z owners!
Check Your 240Z Carbs: Dome Screws and Float Chamber Drain Plugs Matter
240Z pilots – Look at how many screws are holding down the dome. This is how we tell what carb you have.
69-70 Z collectors – Do you have drain plugs on your float chambers directly above the fuel outlet? We have these rare carbs in stock!
2000 Roadster
ZT500 – $950.00 + core
DATSUN 2000 ROADSTER Service SS Reman Carb(pair) ZT Roller Shafts Includes new floats
ZT501 – $300
Core charge for one pair of carbs (pair)
ZT510 – $490 + core
2000 ROADSTER Reman Carb Body w/ ZTRoller Shafts (pair)
ZT511 – $200
Core charge for one pair of carb bodies (with old butterflies)
ZT520 – $165 + core
Intake, polished and plated complete
ZT521 – $75
Core charge for intake
ZT554 – $120
ZTherapy Nozzles – new (pair) 6,000 ft altitude drivers-you must run .099 ZT nozzles for max power
Note: If you require 90 degree nozzles (’67 2000), these are rebuilt and cores are required. Please send in your old nozzles or pay $100 core charge in addition to price.
ZT558 – $290
Master TuneUp Kit Includes: 2 nozzles w/fuel line, 4 fuel line clamps, 4 banjo washers, 2 new RA or N25 needles, 2 new needle & seats (float valves), 2 new float gaskets, “Just SU’s” DVD, insulator gaskets (4) Note: if you require 90 degree nozzles (’67 2000), these are rebuilt and cores are required. Please send in your old nozzles or pay $100 core charge in addition to the price.
ZT25-665 – $50
Needle & seat (pair)
ZT31-608 – $50
Needle & seat (pair) (If you have free-floating floats)
ZT30
Float – pivot float $50 each
ZT16
Float – ZT16 Free-floating float (’70) $65 each
Earn $200 Credit by Sending In Your Extra Carb Pairs! (Limit 3)
Core Credit – Send in extra complete pairs of carbs for $200 toward purchase of complete Carbs only! (Limit 3) (ZT100, ZT500 etc.) (subject to need)
Identify Your Carb Type:
Look at your float chamber-does the fuel exit out the center of the bottom, or out the lower front?
Race-Ready with “Blue Shafts”:
Racers–our shafts are normally undersized. If you race ITS or EP, ask for “Blue Shafts” (RollerShafts that are standard diameter, and SCCA legal)
Tools
ZT159 – $40
Tool, Float level sight glass for all Z flexible clear fuel line attached to drain plug bung. Internal wire formed. Read fuel level while tuning to see height in the float chamber. Great for racers looking for that last possible horsepower.
ZT160 – $50
Tool, Flowmeter, “Unisyn”. Rising ball style, adjustable for high and low RPM balancing. This tool is essential for tuning side drafts. Very easy to use. As shown in the “Just SU’s” video
Datsun 1600
ZT700 – $950 + core
DATSUN 1600/410/411 Service SS Reman Carb (pair) ZT RollerShafts – Includes new floats
ZT701 – $300
Core Charge for one pair of carbs (pair)
ZT710 – $490 + core
DATSUN 1600 Reman Carb Body w/shafts (pair) ZT RollerShafts
ZT711 – $200
Core Charge for one pair of carb bodies (with old butterflies) (pair)
ZT720 – $165 + core
Intake, polished and plated complete
ZT721 – $75
Core Charge for intake
ZT754 – $120
ZTherapy nozzles – 180 degree (late 1600) – new (pair)
90 degree nozzles (early 1600) are rebuilt and cores are required. Please send in your old nozzles or pay $100 core charge in addition to the price.
ZT31-608 – $50
Needle & seat (pair)
ZT758 – $290
Master TuneUp kit includes: 2 nozzles w/fuel line, 4 fuel line clamps, 4 banjo washers, new M39 needles, new needle & seats (float valves), 2 new float gaskets, “Just SU’s” DVD, insulator gaskets (4)
Note: if you require 90 degree nozzles (early 1600), these are rebuilt and cores are required. Please send in your old nozzles or pay $100 charge in addition to the price.
ZT16 – $65 each
Composite float
Check Your Float Chamber: Where Does Your Fuel Exit?
Look at your float chamber-does the fuel exit out the bottom, or out the front?
DATSUN 510 SSS

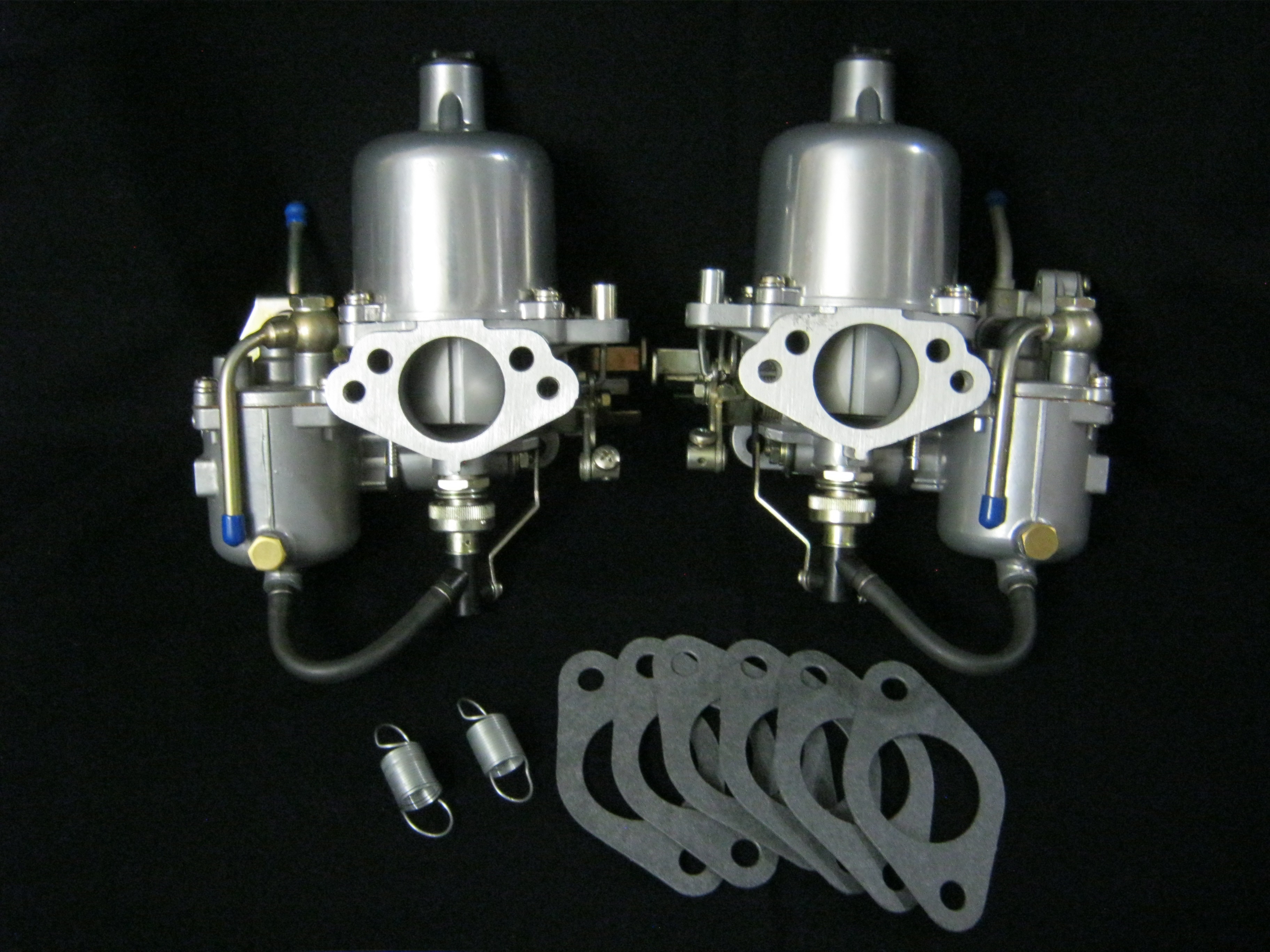

ZT800 – $950.00 + core
DATSUN 510 SSS Service SS Reman Carb(pair) ZT RollerShafts – Includes new floats
ZT801 – $300
Core charge for one pair of carbs (pair)

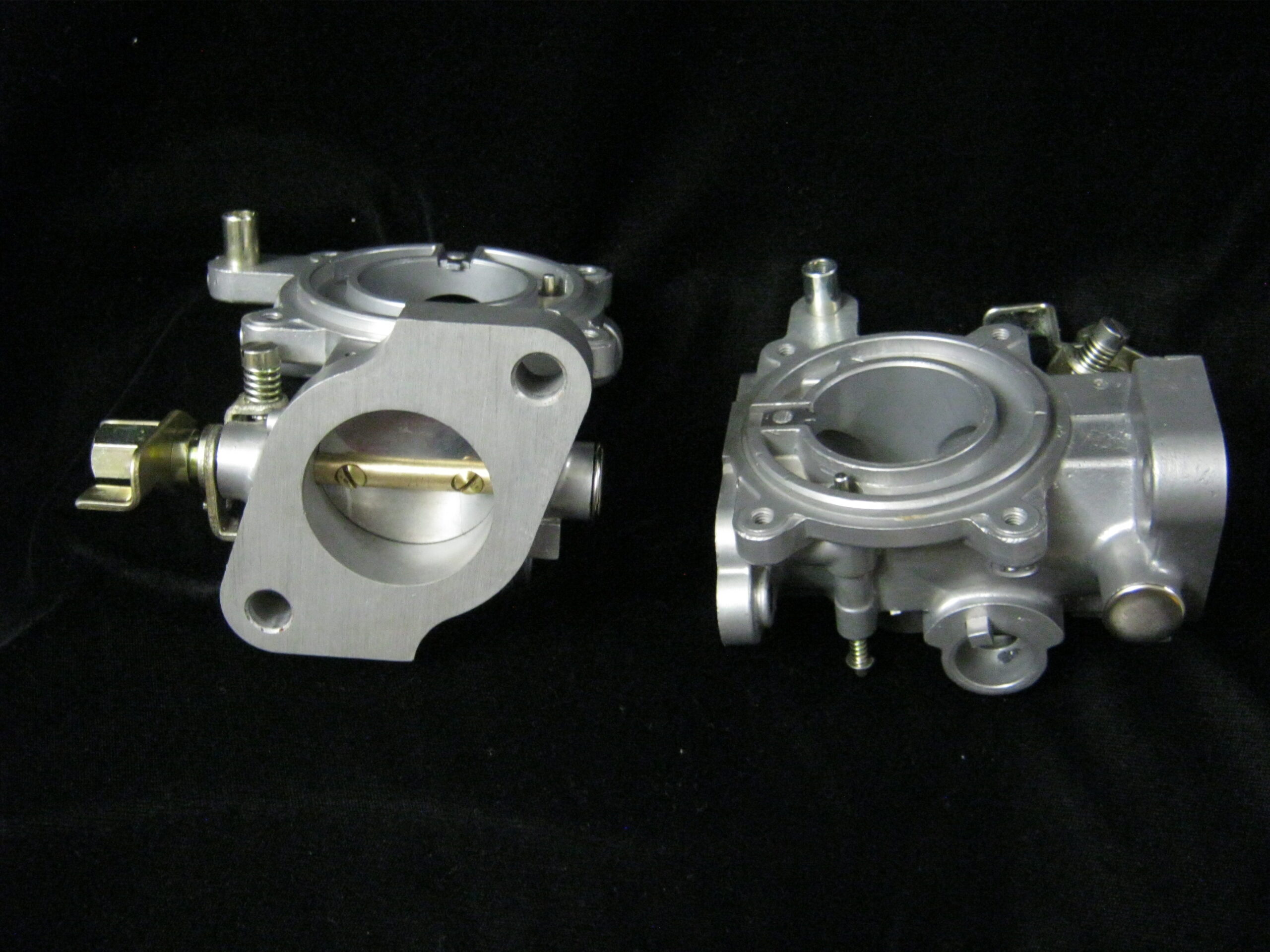

ZT810 – $490 + core
DATSUN 510 SSS Reman Carb Body w/shafts (pair) ZT RollerShafts
ZT811 – $200
Core charge for one pair of carb bodies (with old butterflies) (pair)

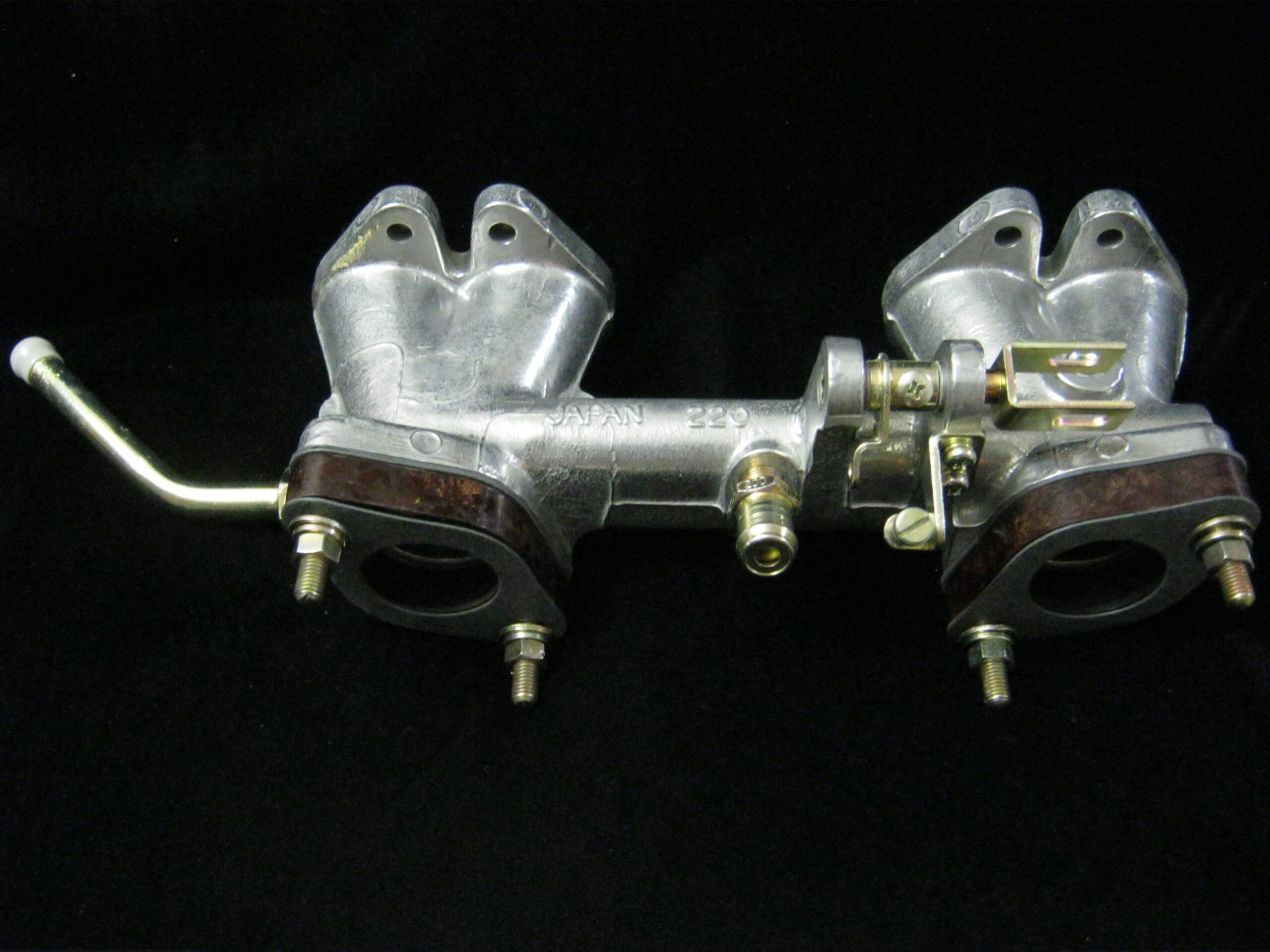

ZT820 – $165 + core
Intake, polished and plated complete
ZT821 – $75
Core charge for intake
ZT830 – $95
2 bolt heat shield for 38mm carbs – new
ZT832 – $95
4 bolt heat shield for 46mm carbs – new
ZT854 – $120
ZTherapy nozzles – new (pair)
ZT31-608 – $50
Needle & seat (pair)
ZT858 – $290
Master TuneUp Kit Includes: 2 new nozzles w/fuel line, 4 fuel line clamps, 4 banjo washers, new M39, M43, or M66 needles, 2 new needle & seats ( float valves), 2 new float gaskets, “Just SU’s” DVD, insulator gaskets (4)
ZT16 – $65 each
Composite float
Earn $200 Credit by Sending In Your Extra Carb Pairs! (Limit 3)
Core Credit – Send in extra complete pairs of carbs for $200 toward purchase of complete Carbs only! (Limit 3) (ZT100, ZT500 etc.) (subject to need)
510 SSS and 1600 – Feel you need more carb for your 2L or bigger 4 cylinder L motor?
We offer 46mm carbs for your L motor, with custom built linkage for the 4 cyl.- $950 plus core carbs
Race-Ready with “Blue Shafts”:
Racers – our shafts are normally undersized. If you race ITS or EP, ask for “Blue Shafts” (Roller Shafts that are standard diameter, and SCCA legal)
HS6 and HS4 British/Swedish Induction
ZT1400 – $950.00 + core
Volvo HS6 3 or 2 bolt Remanufactured Carbs (pair) ZTRollerShafts
ZT1401 – $300
Core charge for one pair of carbs
ZT1410 – $490 + core
Volvo 3 or 2 bolt Reman Carb Body w/shafts(pair) ZTRoller Shafts
ZT1411 – $200
Core charge for one pair of carb bodies (with old butterflies)
ZT1420 – $165 + core
Intake polished and plated complete
ZT1421 – $75
Core charge for intake
Note: 1600 cc engines used a 1 3/4″ mouth HS6, and a 5 1/2″ long piston spring with the KD needle
If you bored your 1.6 out to 2.0 liters, you should be using a 2L setup. This kit is the shorter 4″ 2.0L spring and SM needles. Try stock, then switch to this. Send back what you don’t need for a refund within 45 days. Only offered to customers buying new carbs from us.
Before you call to order new carbs I need to know two things:
1. How many bolts hold your air cleaner to the carb (2 or 3 per carb).
2. Do you have a vacuum advance distributor?
If you are ordering a Volvo intake, does it have the BCDD device?
That’s a thing that screws into the intake above the carbs in the center.
We are collecting 2″ Jag carbs. Please send them in for $200.00 each cash/credit towards ZT product.
We are NOT collecting HS6 cores at this time.
As we collect HS2-HS8 cores, we will enter these markets and offer highly polished high performance units with RollerShafts
AUD ZTSM – $25 each
SM needle 2 litre British, hot rod 240Z-280ZX
AUD ZTKD – $25 each
KD needle 1600 HS6
ZT 160 – $50
Unisyn Flowmeter
